# Multi-Functional Controller (MFC) & 4WD RC Vehicle
[](https://github.com/espressif/esp-idf)
[](https://www.espressif.com/en/products/socs/esp32-s3)
[](#32-rc-vehicle-receiver-node)
[](https://www.kicad.org/)
[](https://en.wikipedia.org/wiki/C_(programming_language))
[](https://www.freertos.org/)
## 1. Project Overview & Aim
- **Primary Goal:** Engineer a high-performance, bare-metal handheld remote controller (**MFC**) from scratch using an **ESP32-S3-N16R8**, paired with a custom **4WD RC Vehicle** controlled by an **ARM Cortex-M3 (`GD32F103C8T6`)**.
- **Secondary Objectives:** Extend the controller's capabilities to include a **cloud-connected AI voice assistant** (`MAX4466`), **local FAT32 SD card telemetry logging**, and **PC Gamepad (`USB HID / Bluetooth`)** support.
- **Tech Stack:** C/C++, ESP-IDF v5.x (FreeRTOS), bare-metal register manipulation, SPI, I2C, Hardware Pulse Counter (`PCNT`), and One-Shot `ADC1`.
---
## 2. Current Situation & Hardware Prototype
- **Controller Prototype:** Currently prototyped on a **6×9 cm perfboard**. The `ESP32-S3-N16R8` communicates over a shared `SPI2_HOST` bus with a Nordic `nRF24L01+` 2.4 GHz transceiver and a temporary 1.3" SH1106 OLED display, decoupled by a `100 µF` electrolytic capacitor across the radio rails.
- **Firmware:** A deterministic FreeRTOS state machine (`firmware/main/mmcontroller.c`) handles hardware quadrature decoding (`PCNT`) for a `KY-040` rotary encoder menu UI, `300 ms` software button debouncing, `ADC1` joystick polling, and live 2.4 GHz RF channel configuration (`0–125`).
- **Display Hardware Pivot (`1.3" OLED` $\rightarrow$ `1.8" ST7789 TFT`):** Bench testing revealed that the 7-pin 1.3" OLED module lacks a physical Chip Select (`CS`) pin, causing SPI bus collisions when sharing the bus. We are upgrading to a **1.8" ST7789 Color TFT LCD** (which exposes a dedicated hardware `CS` pin on `GPIO 10`) to share the SPI bus safely without bus contention.
- **Manufacturing & Enclosure Status:** Paused cutting the rigid ABS plastic project box (`DT-100`, `190 × 137 × 59 mm`) until next month when a variable 3-speed rotary tool (`Dremel/E108`) and `2.35 mm` diamond cutting wheels arrive to ensure clean, professional cutouts without melting the ABS plastic.

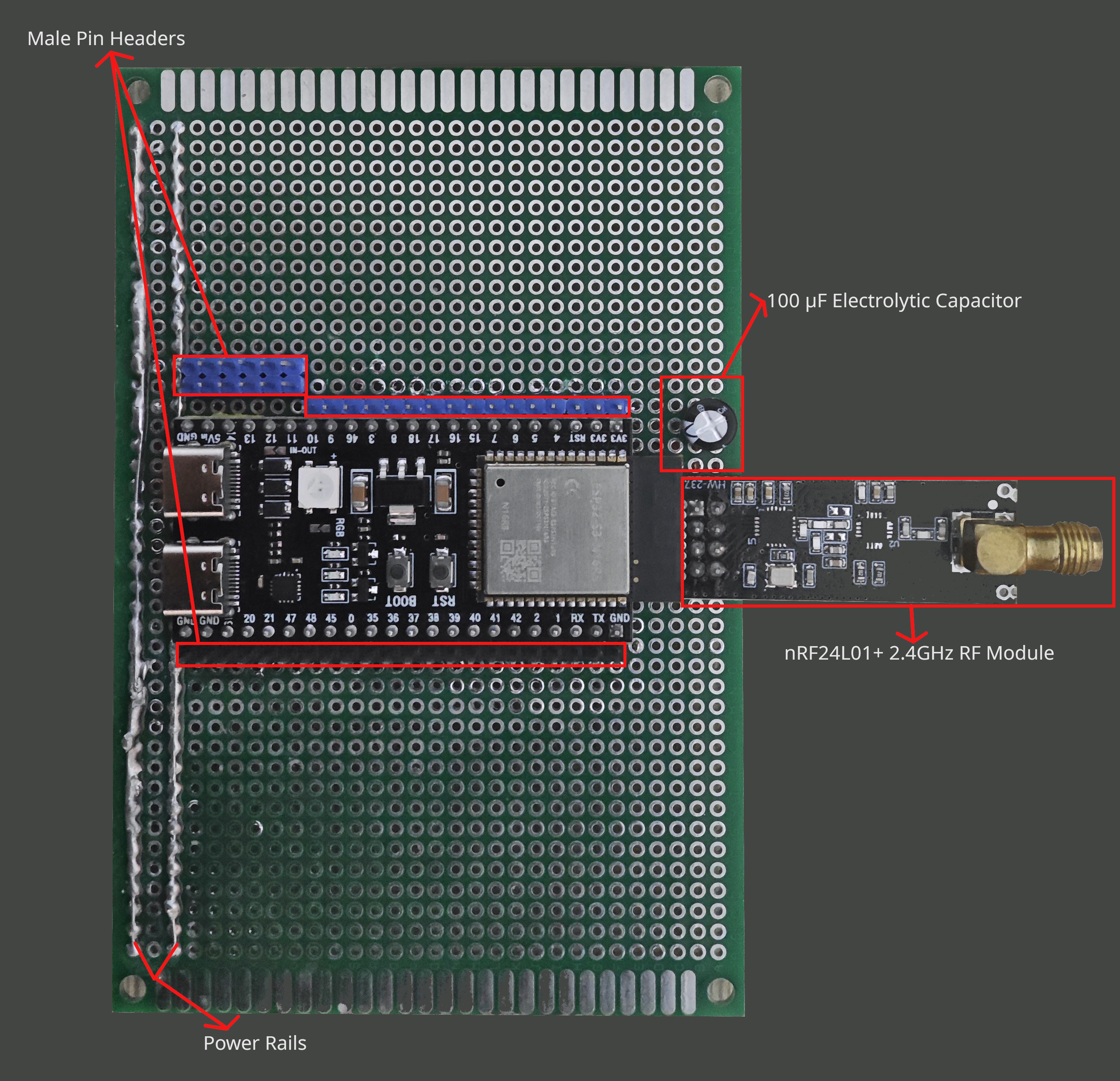

Figure 1: 6×9 cm Perfboard Controller Prototype (Top View) — ESP32-S3-N16R8 module, nRF24L01+ 2.4 GHz transceiver, 100 µF burst-smoothing capacitor, peripheral male header bus, and power rail headers.

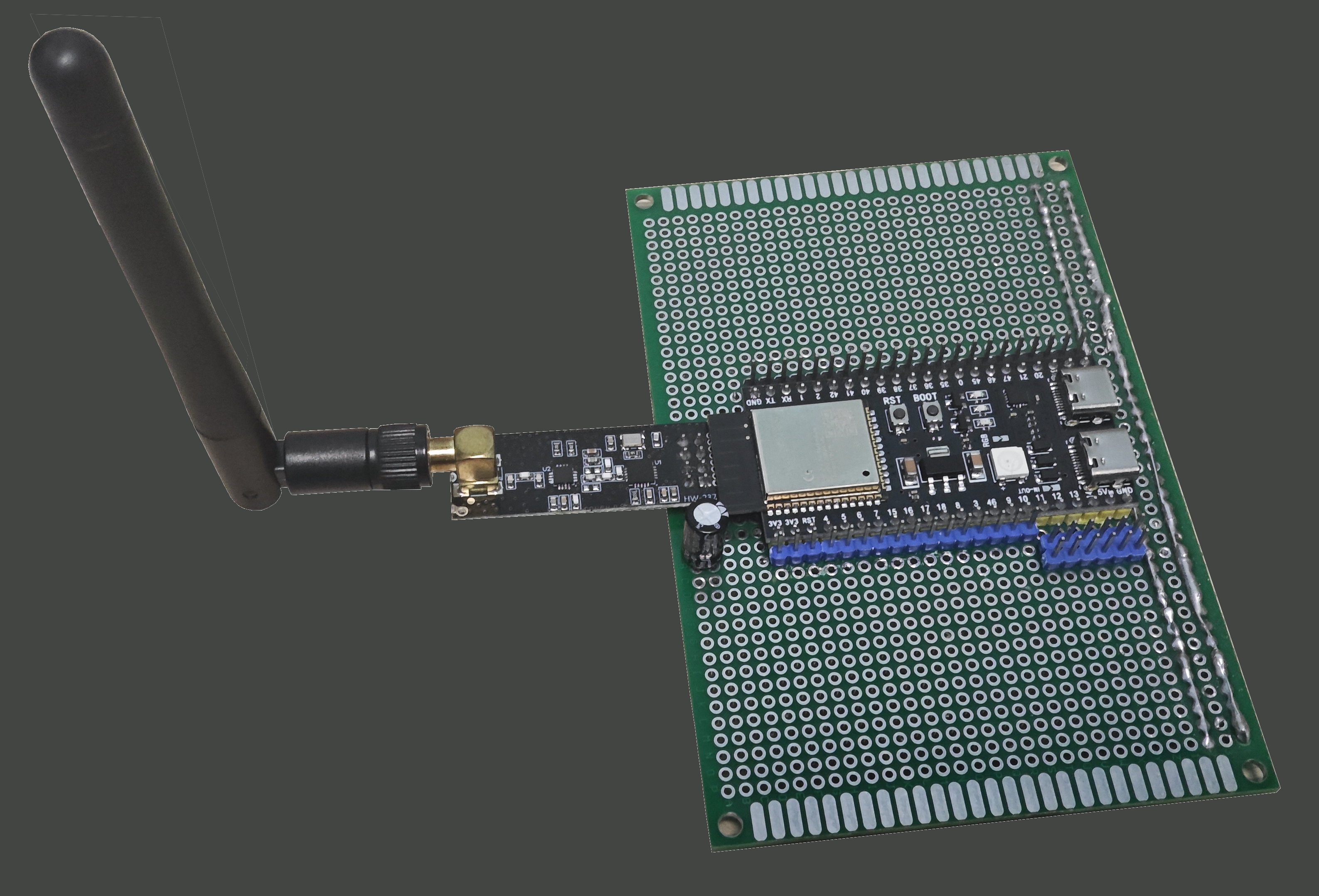

Figure 2: Side Profile — External 2.4 GHz SMA dipole antenna connected to the nRF24L01+ transceiver and dual USB-C ports (Native USB-OTG & UART).

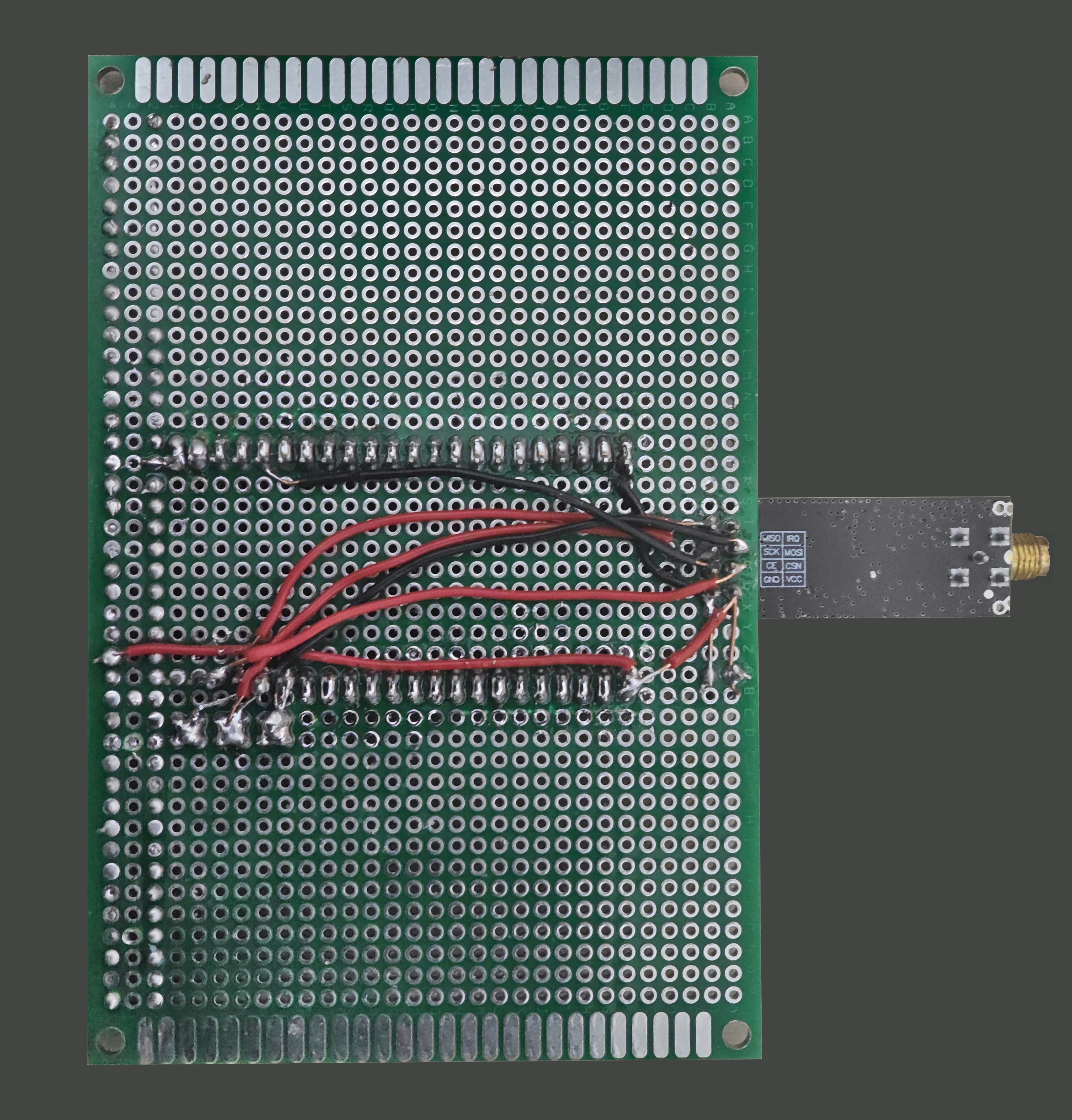

Figure 3: Underbody Bus Routing — Point-to-point solder bridges, common ground/power rails, and shared SPI2 signal routing on the 6×9 cm perfboard.
---
## 3. Hardware Architecture & Bill of Materials (BOM)
### 3.1 Handheld Controller (MFC — Transmitter Node)
| Subsystem | Component | Technical Details & Role |
| :--- | :--- | :--- |
| **MCU** | **Espressif ESP32-S3-N16R8** | Dual-core Xtensa® LX7 @ 240 MHz, 16 MB Quad SPI Flash, 8 MB Octal PSRAM. |
| **RF Telemetry** | **Nordic nRF24L01+ Module** | 2.4 GHz ISM band transceiver over shared `SPI2_HOST`. |
| **Display** | **1.8" ST7789 TFT Color LCD** | 3.3V logic, full-color SPI display **with dedicated `CS` pin** (replacing 7-pin CS-less 1.3" OLED). |
| **Joysticks** | **2× K-Silver (KS) PS5 Hall-Effect Modules** | 3.3V active magnetic contactless gimbals for zero stick drift. |
| **UI Input** | **KY-040 Rotary Encoder** | Quadrature encoder (`CLK`, `DT`, `SW`) decoded in hardware via ESP32-S3 `PCNT`. |
| **Voice AI** | **MAX4466 Electret Microphone Module** | Analog pre-amplifier with adjustable gain for cloud-connected AI voice assistant input. |
| **Data Logging** | **Arduino Micro SD Card Module** | SPI interface, formatted `FAT32` for local telemetry and configuration logging. |
| **Audio Output** | **1× Passive Buzzer + 2× Active Buzzers** | Passive buzzer for melodies + 2× active buzzers for percussive UI clicks, driven by **2N2222 NPN Transistors**. |
| **Power System** | **Dual 18650 Li-ion + TP4056 + MT3608** | Dual 18650 cells, `TP4056` charger, `MT3608` DC-DC boost converter (5V rail), `100 µF` electrolytic capacitor (nRF24 burst smoothing), and `100 nF` ceramic decoupling caps. |
### 3.2 RC Vehicle (Receiver Node)
| Subsystem | Component | Technical Details & Role |
| :--- | :--- | :--- |
| **MCU** | **GD32F103C8T6 Mini Board** | 32-bit ARM® Cortex®-M3 real-time vehicle controller. |
| **RF Telemetry** | **nRF24L01+ PA+LNA Module** | High-power 2.4 GHz transceiver with Power Amplifier, Low-Noise Amplifier, and external SMA antenna (~1 km range). |
| **IMU / Navigation**| **MPU9250 9-DOF Sensor** | 3-axis Gyroscope, 3-axis Accelerometer, and 3-axis Magnetometer (I2C) for tilt-compensated heading. |
| **Drivetrain** | **4× JGB37-520 12V 333 RPM Gear Motors** | High-torque 12V DC gear motors with built-in quadrature encoders for closed-loop PID velocity control. |
| **Chassis / Box** | **DT-100 Project Box** | Rigid black ABS enclosure (`190 × 137 × 59 mm`). |
| **Power System** | **12V Battery + Motor Drivers** | 12V traction battery pack, heavy-duty H-bridge motor drivers, and **12–24V Waterproof Main Switch**. |
---
## 4. Pinout Definitions (ESP32-S3 Controller)
The controller firmware (`firmware/main/mmcontroller.c`) and schematic (`hardware/mfc-1.kicad_sch`) allocate pins on the `ESP32-S3-N16R8` as follows:
| Bus / Peripheral | Signal | ESP32-S3 Pin | Interface / Mode | Notes |
| :--- | :--- | :---: | :--- | :--- |
| **SPI Hub (`SPI2_HOST`)** | `MOSI` | `GPIO 11` | SPI Master Output | Shared data line (`nRF24L01+`, Display `SDA`, MicroSD) |
| **SPI Hub (`SPI2_HOST`)** | `MISO` | `GPIO 13` | SPI Master Input | Shared data input (`nRF24L01+`, MicroSD) |
| **SPI Hub (`SPI2_HOST`)** | `SCK` | `GPIO 12` | SPI Master Clock | Shared clock line (`nRF24L01+`, Display `CLK`, MicroSD) |
| **nRF24L01+ Radio** | `CSN` | `GPIO 14` | SPI Chip Select | Dedicated radio bus enable |
| **nRF24L01+ Radio** | `CE` | `GPIO 21` | Digital Output | Radio TX/RX power state activation |
| **TFT Display (1.8" ST7789)**| `CS` | `GPIO 10` | SPI Chip Select | Dedicated display bus enable |
| **TFT Display (1.8" ST7789)**| `DC` | `GPIO 9` | Digital Output | Command vs. frame data selection |
| **TFT Display (1.8" ST7789)**| `RES` | `GPIO 8` | Digital Output | Hardware display reset (`BLK` tied to `3.3V`) |
| **KY-040 Rotary Encoder** | `CLK` | `GPIO 15` | Hardware `PCNT` | Quadrature channel A (1000 ns glitch filter) |
| **KY-040 Rotary Encoder** | `DT` | `GPIO 16` | Hardware `PCNT` | Quadrature channel B (direction sensing) |
| **KY-040 Rotary Encoder** | `SW` | `GPIO 17` | Input (`PULLUP`) | Push-button switch (300 ms software debounce) |
| **K-Silver Hall Joystick 1**| `VRx` | `GPIO 4` | `ADC1_CH3` (`12 dB`) | Analog X-axis (0–3.3V active Hall sensor) |
| **K-Silver Hall Joystick 1**| `VRy` | `GPIO 5` | `ADC1_CH4` (`12 dB`) | Analog Y-axis (0–3.3V active Hall sensor; 2nd joystick pending) |
---
## 5. Hardware Safety & Engineering Rules
1. **Enclosure Machining RPM Rule:** Do **NOT** use standard fixed `16,000 RPM` rotary tools on the `DT-100` ABS plastic enclosure; high friction melts ABS instead of cutting it. Machining is paused until the variable 3-speed rotary tool with `2.35 mm` diamond cutting discs arrives.
2. **Hall-Effect Gimbal Polarity Protection:** Do **NOT** wire the K-Silver (KS) PS5 Hall-effect joystick `VCC` backward. Unlike passive potentiometers, these are active 3.3V CMOS magnetic sensors and will burn out immediately under reverse polarity.
3. **5V Sensor Level Shifting on GD32:** Do **NOT** wire a 5V `HC-SR04` ultrasonic `ECHO` pin directly to the 3.3V `GD32F103C8T6` without a resistor voltage divider (or use the 3.3V `VL53L0X` I2C Time-of-Flight sensor instead).
4. **nRF24L01+ Burst Decoupling:** Always keep the `100 µF` electrolytic capacitor across the `nRF24L01+` `VCC`/`GND` pins to prevent 3.3V rail brown-outs during PTX transmission bursts.
---
## 6. Immediate Next Steps & Engineering Roadmap
1. **1.8" ST7789 TFT Migration:** Rewrite the display initialization and frame buffer logic using ESP-IDF's `esp_lcd` component to replace the custom 5×8 monochrome OLED driver.
2. **MicroSD Card SPI & FATFS Setup:** Configure the Arduino MicroSD card module on the SPI bus and initialize the `FATFS` virtual filesystem (`VFS`) for reading/writing telemetry logs.
3. **NVS Hall-Effect Joystick Calibration:** Write the calibration routine for the K-Silver PS5 Hall-effect joysticks—measuring resting center, minimum, and maximum voltages and saving them persistently to ESP32-S3 Non-Volatile Storage (`NVS`) flash.
4. **GD32F103C8T6 Vehicle Receiver Firmware:** Structure the ARM Cortex-M3 C codebase to poll the `nRF24L01+ PA+LNA` module, read `MPU9250` 9-DOF I2C telemetry, and run closed-loop PID motor control on the 4× `JGB37-520` encoder motors.
---
## 7. Repository Structure & Build Instructions
```text
multi-functional-controller/
├── docs/
│ └── PROJECT_HANDOFF.md # Canonical engineering handoff & specification
├── firmware/ # ESP-IDF v5.x C99 Firmware Project (ESP32-S3)
│ ├── CMakeLists.txt # Top-level CMake project configuration
│ ├── sdkconfig # Verified ESP32-S3 target configuration
│ └── main/
│ ├── CMakeLists.txt # Component registration
│ └── mmcontroller.c # Master firmware: Shared SPI2, PCNT menu UI, nRF24 tuning
├── hardware/ # KiCad 10 Electronic Design Automation (EDA)
│ ├── mfc-1.kicad_pro # KiCad project file
│ ├── mfc-1.kicad_sch # Controller schematic design (ESP32-S3, nRF24L01+, 100uF cap)
│ └── mfc-1.kicad_pcb # Board layout & routing rules
├── images/ # High-resolution 6x9cm perfboard prototype photography
│ ├── TOP_VIEW.png # Front carrier board overview
│ ├── SIDE_VIEW_WITH_ANTENNA.png # RF antenna and profile perspective
│ └── BOTTOM_VIEW.png # Perfboard underside solder bus wiring
├── .gitignore # Clean repository filter (builds, caches, local configs)
├── LICENSE # MIT License
└── README.md # Master engineering documentation
```
### Build & Flash (ESP32-S3 Controller)
```bash
. $HOME/esp/esp-idf/export.sh
cd firmware
idf.py set-target esp32s3
idf.py build
idf.py -p /dev/ttyACM0 flash monitor
```
---
